WDM-1 (Polycrystalline-like)

Made from microcrystalline diamond and subjected to surface functionalization, this material is well-suited for use in grinding fluids. Application scope: Used for thinning ceramic cover plates and glass. Features: High grinding efficiency, strong removal rate, and no scratches.

Classification:

Class polycrystalline

E-MAIL：

Whatsapp:

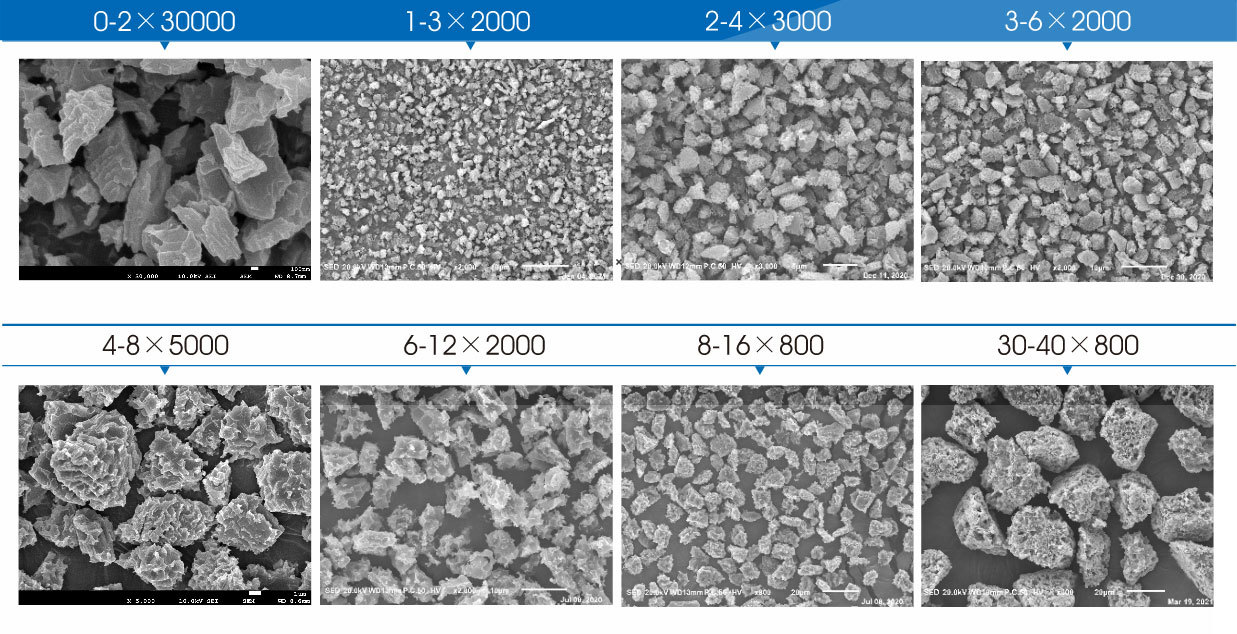

Electron microscope picture

Production Equipment

Testing equipment

Appearance of the factory

Made from microcrystalline diamond and subjected to surface functionalization, it is suitable for use in the field of grinding fluids.

Application scope: Used for ceramic cover plates and glass thinning.

Features: High grinding efficiency, strong material removal rate, and no scratches.

Specification Parameters

Specifications	D10 (μm)	D50 (μm)	D90(μm)
0-2	≥0.4	0.70–1.30	≤1.95
1-3	0.90	1.55–2.50	3.85
2-4	1.60	2.40–3.20	4.65
3-6	2.70	3.85–4.55	6.50
4-8	3.15	4.50–6.35	9.05
5-10	4.40	6.30–6.80	9.45
6-12	4.75	6.80–9.35	13.00
8-16	7.55	10.60–12.60	17.65
10-20	8.95	12.60–15.65	21.90
20-30	14.65	20.40–25.50	35.25
30-40	21.80	30.0–37.0	50.50
